Width 1 (mm)	26.5
Number of teeth 1	122
Svhc	no svhc present!

Product number: 530 0153 10

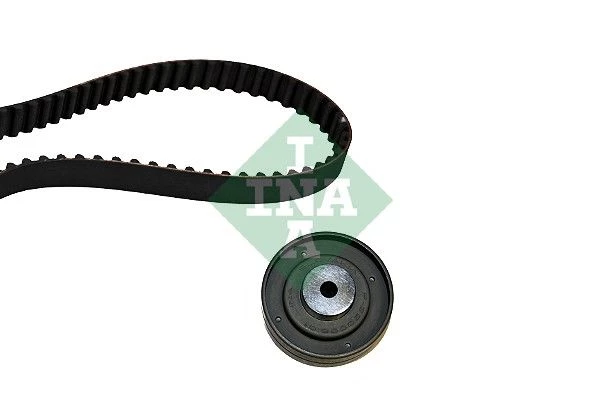

Ina Timing Belt Kit For Audi Ford Vw 100 P 100 Transporter

In stock

Shipping method	Delivery time	Stock
Shipping	11-9-2025	3

Price excl. vat.

£ 38,71

Add to cart

Description

INA Engine Drive Solutions

Timing Belt Kit

The INA Timing Belt Kit contains all the components needed for a precise, reliable camshaft drive. Each kit is engineered to OE specifications for maximum durability, performance, and peace of mind.

OE-grade quality Complete solution Long service life

Kit Features

Complete package: includes timing belt, tensioner, idlers, and all required hardware.
OE specification: precise tooth profile and belt length for correct timing.
High durability: reinforced belt fibres, premium bearings, and wear-resistant pulleys.
Optional water pump kits: available for full cooling system refresh during belt replacement.

When to Replace

Follow manufacturer’s schedule (commonly 60,000–100,000 miles or 5–7 years).
Signs of belt wear such as cracks, fraying, or missing teeth.
Noise from tensioner or idlers.
Coolant leak from the water pump if integrated.

Tip: Replace the belt, tensioner, idlers, and water pump together to avoid repeat labour and ensure reliability.

How to Fit (Universal Guide)

Preparation: Engine cold, battery disconnected. Refer to the service manual for timing marks and torque specs.
Remove covers & drain coolant (if water pump is included).
Release belt tension and remove the old belt, tensioner, idlers, and pump if fitted.
Install new components: Fit tensioner/idlers and water pump (if applicable) using new bolts/gaskets, torque to spec.
Fit new belt: Align all timing marks exactly before tensioning.
Reassemble & test: Rotate engine by hand two turns, check marks, start engine, and inspect for leaks/noise.

Always follow the exact procedure and torque values in your vehicle’s workshop manual.

Manufacturer	Productnumber
audi	046 109 119 , 046109119
audi	046109119
audi	069 109 243 B , 069109243B
audi	069109243B
audi	074 109 119 A , 074109119A
audi	074 109 119 B , 074109119B
audi	074 109 119 E , 074109119E
audi	074 109 119 R , 074109119R
audi	074109119A
audi	074109119B
audi	074109119E
audi	074109119R
seat	046 109 119 , 046109119
seat	046109119
seat	069 109 243 B , 069109243B
seat	069109243B
seat	074 109 119 A , 074109119A
seat	074 109 119 B , 074109119B
seat	074 109 119 E , 074109119E
seat	074 109 119 R , 074109119R
seat	074109119A
seat	074109119B
seat	074109119E
seat	074109119R
skoda	046 109 119 , 046109119
skoda	046109119
skoda	069 109 243 B , 069109243B
skoda	069109243B
skoda	074 109 119 A , 074109119A
skoda	074 109 119 B , 074109119B
skoda	074 109 119 E , 074109119E
skoda	074 109 119 R , 074109119R
skoda	074109119A
skoda	074109119B
skoda	074109119E
skoda	074109119R
vw	046 109 119 , 046109119
vw	046109119
vw	069 109 243 B , 069109243B
vw	069109243B
vw	074 109 119 A , 074109119A
vw	074 109 119 B , 074109119B
vw	074 109 119 E , 074109119E
vw	074 109 119 R , 074109119R
vw	074109119A
vw	074109119B
vw	074109119E
vw	074109119R

Usage numbers
BOSCH 1 987 948 571
BOSCH 1987948571
CONTINENTAL CTAM CT939K1
CONTINENTAL CTAM CT939K6PRO
DAYCO KTB 150
DAYCO KTB150
DAYCO-AU KTB490R
GATES K 015323
GATES K015323
GATES K025323XS
HK RS1053
HUTCHINSON KH73
IPD 20-1053
IPD 201053
RUVILLE 5540172
SCHAEFFLER GRUPPE 530 0153 10
SCHAEFFLER GRUPPE 530015310
SKF VKMA 01042
SKF VKMA 01266
SKF VKMA01042
SKF VKMA01266
SNR KD457.11
SNR KD45711
TRIPLE FIVE 334 2026
TRIPLE FIVE 3342026

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
audi
ford
vw
