Width 1 (mm)	26.5
Number of teeth 1	122
Svhc	no svhc present!

Product number: 530 0173 10

Ina Timing Belt Kit For Audi Vw A6 Lt 28-35 Lt 28-46 Transporter

In stock

Shipping method	Delivery time	Stock
Shipping	11-9-2025	3

Price excl. vat.

£ 54,44

Add to cart

Description

INA Engine Drive Solutions

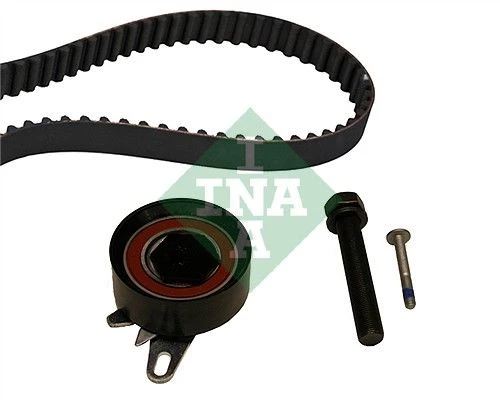

Timing Belt Kit

The INA Timing Belt Kit contains all the components needed for a precise, reliable camshaft drive. Each kit is engineered to OE specifications for maximum durability, performance, and peace of mind.

OE-grade quality Complete solution Long service life

Kit Features

Complete package: includes timing belt, tensioner, idlers, and all required hardware.
OE specification: precise tooth profile and belt length for correct timing.
High durability: reinforced belt fibres, premium bearings, and wear-resistant pulleys.
Optional water pump kits: available for full cooling system refresh during belt replacement.

When to Replace

Follow manufacturer’s schedule (commonly 60,000–100,000 miles or 5–7 years).
Signs of belt wear such as cracks, fraying, or missing teeth.
Noise from tensioner or idlers.
Coolant leak from the water pump if integrated.

Tip: Replace the belt, tensioner, idlers, and water pump together to avoid repeat labour and ensure reliability.

How to Fit (Universal Guide)

Preparation: Engine cold, battery disconnected. Refer to the service manual for timing marks and torque specs.
Remove covers & drain coolant (if water pump is included).
Release belt tension and remove the old belt, tensioner, idlers, and pump if fitted.
Install new components: Fit tensioner/idlers and water pump (if applicable) using new bolts/gaskets, torque to spec.
Fit new belt: Align all timing marks exactly before tensioning.
Reassemble & test: Rotate engine by hand two turns, check marks, start engine, and inspect for leaks/noise.

Always follow the exact procedure and torque values in your vehicle’s workshop manual.

Manufacturer	Productnumber
audi	046 109 119 , 046109119
audi	046109119
audi	074 109 119 A , 074109119A
audi	074 109 119 B , 074109119B
audi	074 109 119 E , 074109119E
audi	074 109 119 R , 074109119R
audi	074 109 243 F , 074109243F
audi	074 109 243 G , 074109243G
audi	074 109 243 J , 074109243J
audi	074 109 243 R , 074109243R
audi	074 198 119 , 074198119
audi	074 198 119 H , 074198119H
audi	074 198 119 Q , 074198119Q
audi	074109119A
audi	074109119B
audi	074109119E
audi	074109119R
audi	074109243F
audi	074109243G
audi	074109243J
audi	074109243R
audi	074198119
audi	074198119H
audi	074198119Q
seat	046 109 119 , 046109119
seat	046109119
seat	074 109 119 A , 074109119A
seat	074 109 119 B , 074109119B
seat	074 109 119 E , 074109119E
seat	074 109 119 R , 074109119R
seat	074 109 243 F , 074109243F
seat	074 109 243 G , 074109243G
seat	074 109 243 J , 074109243J
seat	074 109 243 R , 074109243R
seat	074 198 119 , 074198119
seat	074 198 119 H , 074198119H
seat	074 198 119 Q , 074198119Q
seat	074109119A
seat	074109119B
seat	074109119E
seat	074109119R
seat	074109243F
seat	074109243G
seat	074109243J
seat	074109243R
seat	074198119
seat	074198119H
seat	074198119Q
skoda	046 109 119 , 046109119
skoda	046109119
skoda	074 109 119 A , 074109119A
skoda	074 109 119 B , 074109119B
skoda	074 109 119 E , 074109119E
skoda	074 109 119 R , 074109119R
skoda	074 109 243 F , 074109243F
skoda	074 109 243 G , 074109243G
skoda	074 109 243 J , 074109243J
skoda	074 109 243 R , 074109243R
skoda	074 198 119 , 074198119
skoda	074 198 119 H , 074198119H
skoda	074 198 119 Q , 074198119Q
skoda	074109119A
skoda	074109119B
skoda	074109119E
skoda	074109119R
skoda	074109243F
skoda	074109243G
skoda	074109243J
skoda	074109243R
skoda	074198119
skoda	074198119H
skoda	074198119Q
vw	046 109 119 , 046109119
vw	046109119
vw	074 109 119 A , 074109119A
vw	074 109 119 B , 074109119B
vw	074 109 119 E , 074109119E
vw	074 109 119 R , 074109119R
vw	074 109 243 F , 074109243F
vw	074 109 243 G , 074109243G
vw	074 109 243 J , 074109243J
vw	074 109 243 R , 074109243R
vw	074 198 119 , 074198119
vw	074 198 119 H , 074198119H
vw	074 198 119 Q , 074198119Q
vw	074109119A
vw	074109119B
vw	074109119E
vw	074109119R
vw	074109243F
vw	074109243G
vw	074109243J
vw	074109243R
vw	074198119
vw	074198119H
vw	074198119Q

Usage numbers
BOSCH 1 987 948 033
BOSCH 1 987 948 572
BOSCH 1987948033
BOSCH 1987948572
CONTINENTAL CTAM CT939K2
DAYCO KTB343
GATES K045323XS
HK RS1072
IPD 20-1072
IPD 201072
QUINTON HAZELL QBK650
RUVILLE 5544670
Saleri SIL K1PA1002
SCHAEFFLER GRUPPE 530 0173 10
SCHAEFFLER GRUPPE 530017310
SNR KD457.60
SNR KD45760
TRIPLE FIVE 323 1319
TRIPLE FIVE 3231319

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
