Width 1 (mm)	25
Number of teeth 1	141
Svhc	no svhc present!

Product number: 530 0361 10

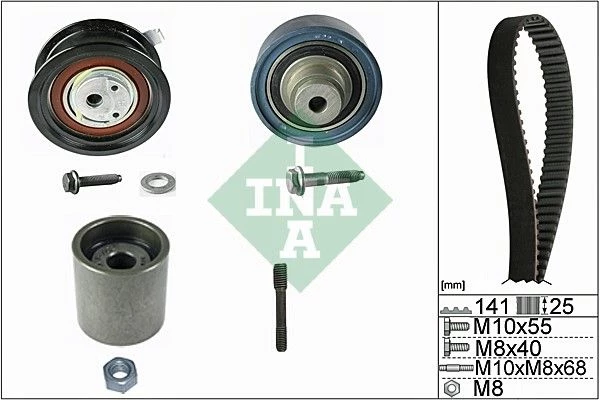

Ina Timing Belt Kit For Audi Seat Skoda Vw A3 Bora Cordoba Fabia Fox Golf Ibiza

In stock

Shipping method	Delivery time	Stock
Shipping	11-9-2025	3

Price excl. vat.

£ 83,48

Add to cart

Description

INA Engine Drive Solutions

Timing Belt Kit

The INA Timing Belt Kit contains all the components needed for a precise, reliable camshaft drive. Each kit is engineered to OE specifications for maximum durability, performance, and peace of mind.

OE-grade quality Complete solution Long service life

Kit Features

Complete package: includes timing belt, tensioner, idlers, and all required hardware.
OE specification: precise tooth profile and belt length for correct timing.
High durability: reinforced belt fibres, premium bearings, and wear-resistant pulleys.
Optional water pump kits: available for full cooling system refresh during belt replacement.

When to Replace

Follow manufacturer’s schedule (commonly 60,000–100,000 miles or 5–7 years).
Signs of belt wear such as cracks, fraying, or missing teeth.
Noise from tensioner or idlers.
Coolant leak from the water pump if integrated.

Tip: Replace the belt, tensioner, idlers, and water pump together to avoid repeat labour and ensure reliability.

How to Fit (Universal Guide)

Preparation: Engine cold, battery disconnected. Refer to the service manual for timing marks and torque specs.
Remove covers & drain coolant (if water pump is included).
Release belt tension and remove the old belt, tensioner, idlers, and pump if fitted.
Install new components: Fit tensioner/idlers and water pump (if applicable) using new bolts/gaskets, torque to spec.
Fit new belt: Align all timing marks exactly before tensioning.
Reassemble & test: Rotate engine by hand two turns, check marks, start engine, and inspect for leaks/noise.

Always follow the exact procedure and torque values in your vehicle’s workshop manual.

Manufacturer	Productnumber
audi	036 109 244 K , 036109244K
audi	036109244K
audi	038 109 119 M , 038109119M
audi	038 109 119 R , 038109119R
audi	038 109 243 , 038109243
audi	038 109 243 D , 038109243D
audi	038 109 243 F , 038109243F
audi	038 109 243 G , 038109243G
audi	038 109 243 H , 038109243H
audi	038 109 243 N , 038109243N
audi	038 109 244 B , 038109244B
audi	038 109 244 C , 038109244C
audi	038 109 244 H , 038109244H
audi	038 109 244 M , 038109244M
audi	038 109 244 P , 038109244P
audi	038 109 244 R , 038109244R
audi	038109119M
audi	038109119R
audi	038109243
audi	038109243D
audi	038109243F
audi	038109243G
audi	038109243H
audi	038109243N
audi	038109244B
audi	038109244C
audi	038109244H
audi	038109244M
audi	038109244P
audi	038109244R
audi	03L 109 244 D , 03L109244D
audi	03L 109 244 K , 03L109244K
audi	03L109244D
audi	03L109244K
audi	058 109 244 , 058109244
audi	058109244
audi	2X0 109 119 A , 2X0109119A
audi	2X0109119A
seat	036 109 244 K , 036109244K
seat	036109244K
seat	038 109 119 M , 038109119M
seat	038 109 119 R , 038109119R
seat	038 109 243 , 038109243
seat	038 109 243 D , 038109243D
seat	038 109 243 F , 038109243F
seat	038 109 243 G , 038109243G
seat	038 109 243 H , 038109243H
seat	038 109 243 N , 038109243N
seat	038 109 244 B , 038109244B
seat	038 109 244 C , 038109244C
seat	038 109 244 H , 038109244H
seat	038 109 244 M , 038109244M
seat	038 109 244 P , 038109244P
seat	038 109 244 R , 038109244R
seat	038109119M
seat	038109119R
seat	038109243
seat	038109243D
seat	038109243F
seat	038109243G
seat	038109243H
seat	038109243N
seat	038109244B
seat	038109244C
seat	038109244H
seat	038109244M
seat	038109244P
seat	038109244R
seat	03L 109 244 D , 03L109244D
seat	03L 109 244 K , 03L109244K
seat	03L109244D
seat	03L109244K
seat	058 109 244 , 058109244
seat	058109244
seat	2X0 109 119 A , 2X0109119A
seat	2X0109119A
skoda	036 109 244 K , 036109244K
skoda	036109244K
skoda	038 109 119 M , 038109119M
skoda	038 109 119 R , 038109119R
skoda	038 109 243 , 038109243
skoda	038 109 243 D , 038109243D
skoda	038 109 243 F , 038109243F
skoda	038 109 243 G , 038109243G
skoda	038 109 243 H , 038109243H
skoda	038 109 243 N , 038109243N
skoda	038 109 244 B , 038109244B
skoda	038 109 244 C , 038109244C
skoda	038 109 244 H , 038109244H
skoda	038 109 244 M , 038109244M
skoda	038 109 244 P , 038109244P
skoda	038 109 244 R , 038109244R
skoda	038109119M
skoda	038109119R
skoda	038109243
skoda	038109243D
skoda	038109243F
skoda	038109243G
skoda	038109243H
skoda	038109243N
skoda	038109244B
skoda	038109244C
skoda	038109244H
skoda	038109244M
skoda	038109244P
skoda	038109244R
skoda	03L 109 244 D , 03L109244D
skoda	03L 109 244 K , 03L109244K
skoda	03L109244D
skoda	03L109244K
skoda	058 109 244 , 058109244
skoda	058109244
skoda	2X0 109 119 A , 2X0109119A
skoda	2X0109119A
vw	036 109 244 K , 036109244K
vw	036109244K
vw	038 109 119 M , 038109119M
vw	038 109 119 R , 038109119R
vw	038 109 243 , 038109243
vw	038 109 243 D , 038109243D
vw	038 109 243 F , 038109243F
vw	038 109 243 G , 038109243G
vw	038 109 243 H , 038109243H
vw	038 109 243 N , 038109243N
vw	038 109 244 B , 038109244B
vw	038 109 244 C , 038109244C
vw	038 109 244 H , 038109244H
vw	038 109 244 M , 038109244M
vw	038 109 244 P , 038109244P
vw	038 109 244 R , 038109244R
vw	038109119M
vw	038109119R
vw	038109243
vw	038109243D
vw	038109243F
vw	038109243G
vw	038109243H
vw	038109243N
vw	038109244B
vw	038109244C
vw	038109244H
vw	038109244M
vw	038109244P
vw	038109244R
vw	03L 109 244 D , 03L109244D
vw	03L 109 244 K , 03L109244K
vw	03L109244D
vw	03L109244K
vw	058 109 244 , 058109244
vw	058109244
vw	2X0 109 119 A , 2X0109119A
vw	2X0109119A

Usage numbers
BOSCH 1 987 948 069
BOSCH 1 987 948 655
BOSCH 1987948069
BOSCH 1987948655
CONTINENTAL CTAM CT1044K2
DAYCO KTB429
FEBI BILSTEIN 30781
GATES K025543XS
GATES K025559XS
HK RS1348
IPD 20-1348
IPD 201348
QUINTON HAZELL QBK269
QUINTON HAZELL QBK438
RUVILLE 5549173
SCHAEFFLER GRUPPE 530 0361 10
SCHAEFFLER GRUPPE 530036110
SKF VKMA 01130
SKF VKMA01130
SKF VKMA01275

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
audi
seat
skoda
vw

FAQ

You can enter your Vehicle Registration Number on our homepage or manually select your vehicle details. We will then filter the parts that match your vehicle. Always double-check the Product Properties section to confirm correct fitment.

Yes! We’re constantly expanding our product range and catalog. If you can’t find the part you’re looking for, please contact us. We work with several manufacturers and may be able to source the part for you.

Many product pages include a Fitment Details tab with additional information. If you still have questions, feel free to use our message service — we’re happy to help.

Parts do not come with additional items like fitting kits or gaskets unless it is clearly specified in the Part Details section of the product page.

Brake Discs: Most standard brake discs are priced individually, but for safety reasons, they must be purchased in pairs. When required, we will automatically set the quantity to 2 in your basket.
Brake Pads: These are sold as a set (either front or rear), so one box is enough for two discs.

The Compatibility Table can be found on each product page, usually below the main product description. Look for a tab or heading labeled Compatibility.
