Width 1 (mm)	20
Width 2 (mm)	17
Number of belts	2
Number of teeth 1	130
Number of teeth 2	58
Svhc	no svhc present!

Product number: 530 0089 10

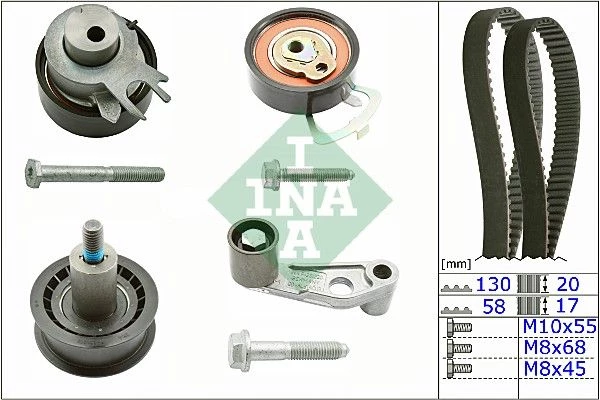

Ina Timing Belt Kit For Audi Seat Skoda Vw Vw (Svw) A2 Altea Altea Xl Arosa Bora

Out of stock

Price incl. vat.

£ 78,64

Notify me when back in stock

Description

INA Engine Drive Solutions

Timing Belt Kit

The INA Timing Belt Kit contains all the components needed for a precise, reliable camshaft drive. Each kit is engineered to OE specifications for maximum durability, performance, and peace of mind.

OE-grade quality Complete solution Long service life

Kit Features

Complete package: includes timing belt, tensioner, idlers, and all required hardware.
OE specification: precise tooth profile and belt length for correct timing.
High durability: reinforced belt fibres, premium bearings, and wear-resistant pulleys.
Optional water pump kits: available for full cooling system refresh during belt replacement.

When to Replace

Follow manufacturer’s schedule (commonly 60,000–100,000 miles or 5–7 years).
Signs of belt wear such as cracks, fraying, or missing teeth.
Noise from tensioner or idlers.
Coolant leak from the water pump if integrated.

Tip: Replace the belt, tensioner, idlers, and water pump together to avoid repeat labour and ensure reliability.

How to Fit (Universal Guide)

Preparation: Engine cold, battery disconnected. Refer to the service manual for timing marks and torque specs.
Remove covers & drain coolant (if water pump is included).
Release belt tension and remove the old belt, tensioner, idlers, and pump if fitted.
Install new components: Fit tensioner/idlers and water pump (if applicable) using new bolts/gaskets, torque to spec.
Fit new belt: Align all timing marks exactly before tensioning.
Reassemble & test: Rotate engine by hand two turns, check marks, start engine, and inspect for leaks/noise.

Always follow the exact procedure and torque values in your vehicle’s workshop manual.

Manufacturer	Productnumber
audi	036 109 119 AG , 036109119AG
audi	036 109 119 M , 036109119M
audi	036 109 119 P , 036109119P
audi	036 109 119 Q , 036109119Q
audi	036 109 181 A , 036109181A
audi	036 109 181 B , 036109181B
audi	036 109 243 AB , 036109243AB
audi	036 109 243 AC , 036109243AC
audi	036 109 243 AD , 036109243AD
audi	036 109 243 AE , 036109243AE
audi	036 109 243 AF , 036109243AF
audi	036 109 243 AG , 036109243AG
audi	036 109 243 E , 036109243E
audi	036 109 243 K , 036109243K
audi	036 109 243 L , 036109243L
audi	036 109 243 R , 036109243R
audi	036 109 243 S , 036109243S
audi	036 109 244 C , 036109244C
audi	036 109 244 D , 036109244D
audi	036 109 244 J , 036109244J
audi	036 198 119 E , 036198119E
audi	036109119AG
audi	036109119M
audi	036109119P
audi	036109119Q
audi	036109181A
audi	036109181B
audi	036109243AB
audi	036109243AC
audi	036109243AD
audi	036109243AE
audi	036109243AF
audi	036109243AG
audi	036109243E
audi	036109243K
audi	036109243L
audi	036109243R
audi	036109243S
audi	036109244C
audi	036109244D
audi	036109244J
audi	036198119E
seat	036 109 119 AG , 036109119AG
seat	036 109 119 M , 036109119M
seat	036 109 119 P , 036109119P
seat	036 109 119 Q , 036109119Q
seat	036 109 181 A , 036109181A
seat	036 109 181 B , 036109181B
seat	036 109 243 AB , 036109243AB
seat	036 109 243 AC , 036109243AC
seat	036 109 243 AD , 036109243AD
seat	036 109 243 AE , 036109243AE
seat	036 109 243 AF , 036109243AF
seat	036 109 243 AG , 036109243AG
seat	036 109 243 E , 036109243E
seat	036 109 243 K , 036109243K
seat	036 109 243 L , 036109243L
seat	036 109 243 R , 036109243R
seat	036 109 243 S , 036109243S
seat	036 109 244 C , 036109244C
seat	036 109 244 D , 036109244D
seat	036 109 244 J , 036109244J
seat	036 198 119 E , 036198119E
seat	036109119AG
seat	036109119M
seat	036109119P
seat	036109119Q
seat	036109181A
seat	036109181B
seat	036109243AB
seat	036109243AC
seat	036109243AD
seat	036109243AE
seat	036109243AF
seat	036109243AG
seat	036109243E
seat	036109243K
seat	036109243L
seat	036109243R
seat	036109243S
seat	036109244C
seat	036109244D
seat	036109244J
seat	036198119E
skoda	036 109 119 AG , 036109119AG
skoda	036 109 119 M , 036109119M
skoda	036 109 119 P , 036109119P
skoda	036 109 119 Q , 036109119Q
skoda	036 109 181 A , 036109181A
skoda	036 109 181 B , 036109181B
skoda	036 109 243 AB , 036109243AB
skoda	036 109 243 AC , 036109243AC
skoda	036 109 243 AD , 036109243AD
skoda	036 109 243 AE , 036109243AE
skoda	036 109 243 AF , 036109243AF
skoda	036 109 243 AG , 036109243AG
skoda	036 109 243 E , 036109243E
skoda	036 109 243 K , 036109243K
skoda	036 109 243 L , 036109243L
skoda	036 109 243 R , 036109243R
skoda	036 109 243 S , 036109243S
skoda	036 109 244 C , 036109244C
skoda	036 109 244 D , 036109244D
skoda	036 109 244 J , 036109244J
skoda	036 198 119 E , 036198119E
skoda	036109119AG
skoda	036109119M
skoda	036109119P
skoda	036109119Q
skoda	036109181A
skoda	036109181B
skoda	036109243AB
skoda	036109243AC
skoda	036109243AD
skoda	036109243AE
skoda	036109243AF
skoda	036109243AG
skoda	036109243E
skoda	036109243K
skoda	036109243L
skoda	036109243R
skoda	036109243S
skoda	036109244C
skoda	036109244D
skoda	036109244J
skoda	036198119E
vw	036 109 119 AG , 036109119AG
vw	036 109 119 M , 036109119M
vw	036 109 119 P , 036109119P
vw	036 109 119 Q , 036109119Q
vw	036 109 181 A , 036109181A
vw	036 109 181 B , 036109181B
vw	036 109 243 AB , 036109243AB
vw	036 109 243 AC , 036109243AC
vw	036 109 243 AD , 036109243AD
vw	036 109 243 AE , 036109243AE
vw	036 109 243 AF , 036109243AF
vw	036 109 243 AG , 036109243AG
vw	036 109 243 E , 036109243E
vw	036 109 243 K , 036109243K
vw	036 109 243 L , 036109243L
vw	036 109 243 R , 036109243R
vw	036 109 243 S , 036109243S
vw	036 109 244 C , 036109244C
vw	036 109 244 D , 036109244D
vw	036 109 244 J , 036109244J
vw	036 198 119 E , 036198119E
vw	036109119AG
vw	036109119M
vw	036109119P
vw	036109119Q
vw	036109181A
vw	036109181B
vw	036109243AB
vw	036109243AC
vw	036109243AD
vw	036109243AE
vw	036109243AF
vw	036109243AG
vw	036109243E
vw	036109243K
vw	036109243L
vw	036109243R
vw	036109243S
vw	036109244C
vw	036109244D
vw	036109244J
vw	036198119E
vw (svw)	036 109 119 AG , 036109119AG
vw (svw)	036 109 181 B , 036109181B
vw (svw)	036 109 243 AF , 036109243AF
vw (svw)	036 109 243 AG , 036109243AG
vw (svw)	036 109 244 J , 036109244J
vw (svw)	036109119AG
vw (svw)	036109181B
vw (svw)	036109243AF
vw (svw)	036109243AG
vw (svw)	036109244J

Usage numbers
BOSCH 1 987 948 012
BOSCH 1 987 948 254
BOSCH 1 987 948 988
BOSCH 1987948012
BOSCH 1987948254
BOSCH 1987948988
CONTINENTAL CTAM CT957K1
DAYCO KTB338
DAYCO KTB347
DAYCO-AU KTB347E
GATES K025565XS
HK RS1258
HUTCHINSON KH163
IPD 20-1258
IPD 201258
QUINTON HAZELL QBK582
RUVILLE 5545670
SCHAEFFLER GRUPPE 530 0089 10
SCHAEFFLER GRUPPE 530008910
SKF VKMA 01121
SKF VKMA01121
SNR KD457.26
SNR KD45726
TRIPLE FIVE 323 1041
TRIPLE FIVE 3231041
