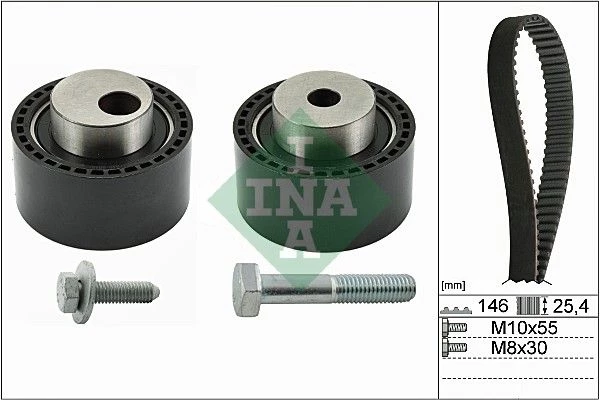

Width 1 (mm)	25.4
Number of teeth 1	146
Svhc	no svhc present!

Product number: 530 0234 10

Ina Timing Belt Kit For Citroën Fiat Lancia Peugeot 406 607 807 C5 C8 Phedra Uly

In stock

Shipping method	Delivery time	Stock
Shipping	11-9-2025	3

Price excl. vat.

£ 55,65

Add to cart

Description

INA Engine Drive Solutions

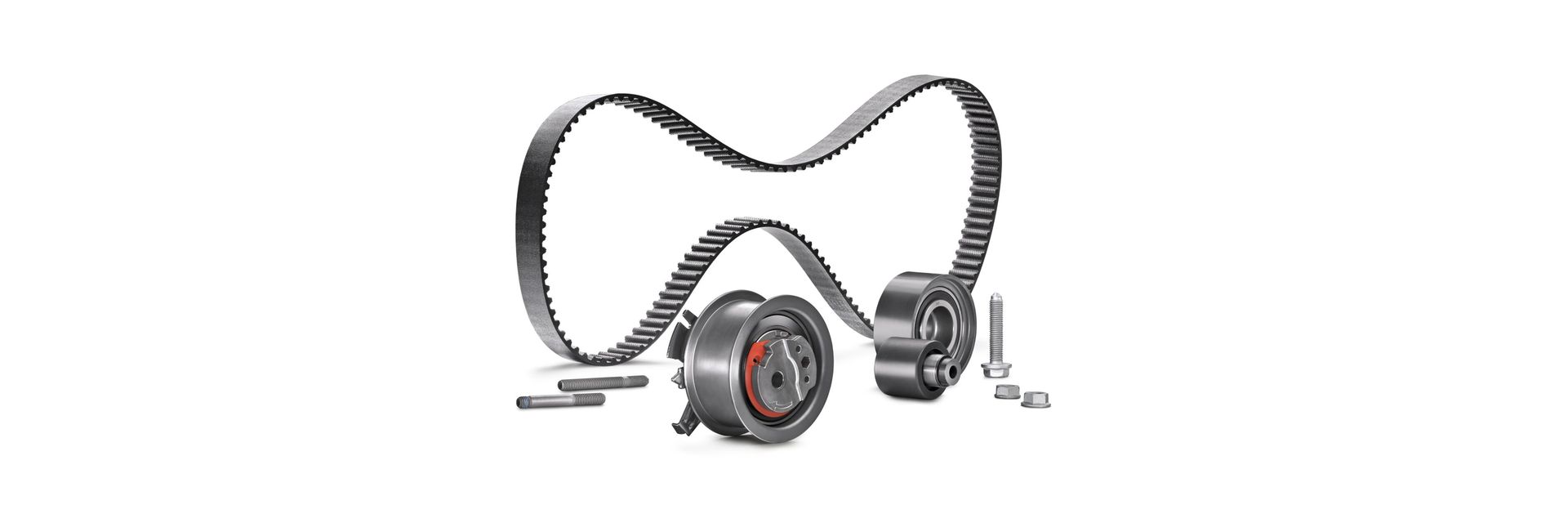

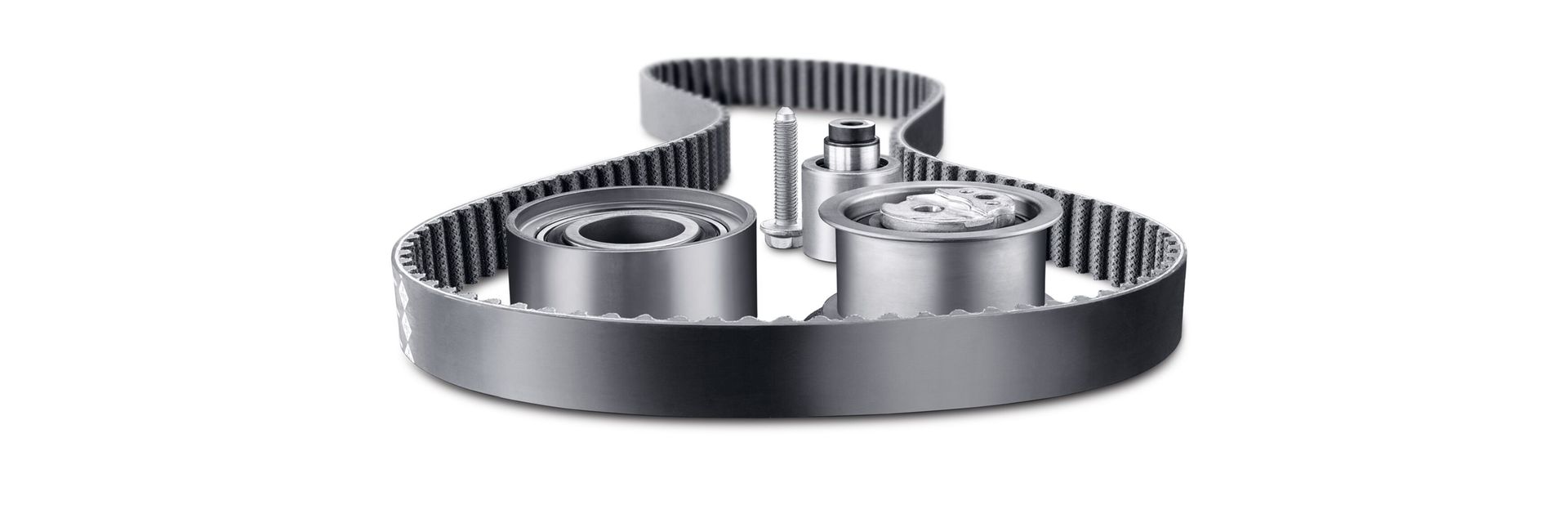

Timing Belt Kit

The INA Timing Belt Kit contains all the components needed for a precise, reliable camshaft drive. Each kit is engineered to OE specifications for maximum durability, performance, and peace of mind.

OE-grade quality Complete solution Long service life

Kit Features

Complete package: includes timing belt, tensioner, idlers, and all required hardware.
OE specification: precise tooth profile and belt length for correct timing.
High durability: reinforced belt fibres, premium bearings, and wear-resistant pulleys.

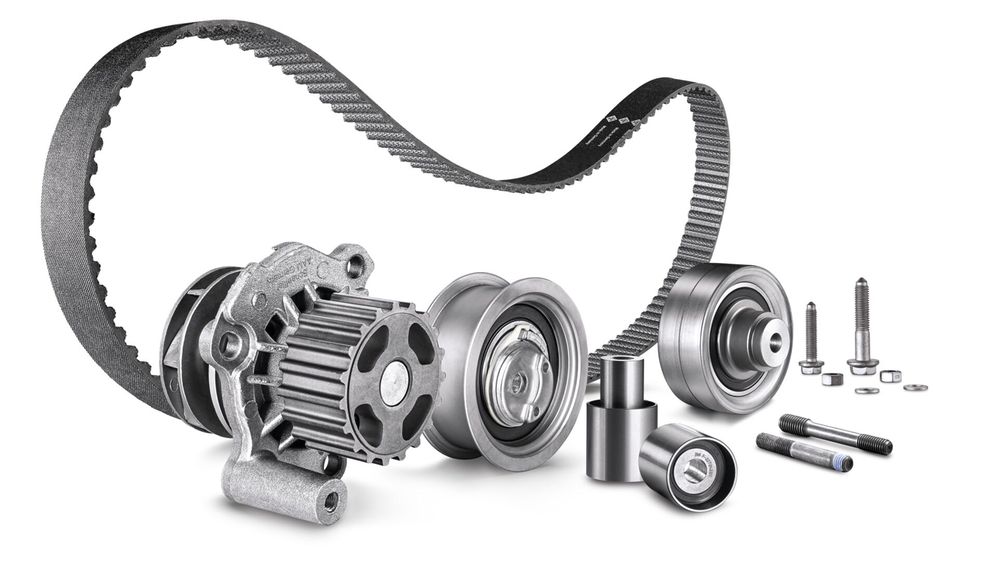

Optional water pump kits: available for full cooling system refresh during belt replacement.

When to Replace

Follow manufacturer’s schedule (commonly 60,000–100,000 miles or 5–7 years).
Signs of belt wear such as cracks, fraying, or missing teeth.
Noise from tensioner or idlers.
Coolant leak from the water pump if integrated.

Tip: Replace the belt, tensioner, idlers, and water pump together to avoid repeat labour and ensure reliability.

How to Fit (Universal Guide)

Preparation: Engine cold, battery disconnected. Refer to the service manual for timing marks and torque specs.
Remove covers & drain coolant (if water pump is included).
Release belt tension and remove the old belt, tensioner, idlers, and pump if fitted.
Install new components: Fit tensioner/idlers and water pump (if applicable) using new bolts/gaskets, torque to spec.
Fit new belt: Align all timing marks exactly before tensioning.
Reassemble & test: Rotate engine by hand two turns, check marks, start engine, and inspect for leaks/noise.

Always follow the exact procedure and torque values in your vehicle’s workshop manual.

Manufacturer	Productnumber
citroËn	0816.A6 , 0816A6
citroËn	0816A6
citroËn	0829.60 , 082960
citroËn	0829.61 , 082961
citroËn	0829.62 , 082962
citroËn	0829.63 , 082963
citroËn	082960
citroËn	082961
citroËn	082962
citroËn	082963
citroËn	0830.28 , 083028
citroËn	0830.29 , 083029
citroËn	0830.30 , 083030
citroËn	0830.31 , 083031
citroËn	083028
citroËn	083029
citroËn	083030
citroËn	083031
citroËn	0831.60 , 083160
citroËn	0831.61 , 083161
citroËn	083160
citroËn	083161
citroËn	94 008 296 29 , 9400829629
citroËn	9400829629
citroËn	96 296 777 , 96296777
citroËn	96 375 140 , 96375140
citroËn	96 381 153 80 , 9638115380
citroËn	96 759 966 80 , 9675996680
citroËn	96296777
citroËn	96375140
citroËn	9638115380
citroËn	9675996680
fiat	9400829629
fiat	9400830289
fiat	9400830319
fiat	9400831609
fiat	9463380180
fiat	9637513980
fiat	9637514080
lancia	9400829629
lancia	9400830319
lancia	9463380180
peugeot	0816.A6 , 0816A6
peugeot	0816A6
peugeot	0829.60 , 082960
peugeot	0829.61 , 082961
peugeot	0829.62 , 082962
peugeot	0829.63 , 082963
peugeot	082960
peugeot	082961
peugeot	082962
peugeot	082963
peugeot	0830.28 , 083028
peugeot	0830.29 , 083029
peugeot	0830.30 , 083030
peugeot	0830.31 , 083031
peugeot	083028
peugeot	083029
peugeot	083030
peugeot	083031
peugeot	0831.60 , 083160
peugeot	0831.61 , 083161
peugeot	083160
peugeot	083161
peugeot	94 008 296 29 , 9400829629
peugeot	9400829629
peugeot	96 296 777 , 96296777
peugeot	96 375 140 , 96375140
peugeot	96 381 153 80 , 9638115380
peugeot	96 759 966 80 , 9675996680
peugeot	96296777
peugeot	96375140
peugeot	9638115380
peugeot	9675996680

Usage numbers
AJUSA 0831.60
AJUSA 0831.61
AJUSA 083160
AJUSA 083161
BOSCH 1 987 946 351
BOSCH 1 987 946 591
BOSCH 1 987 948 019
BOSCH 1987946351
BOSCH 1987946591
BOSCH 1987948019
CONTINENTAL CTAM CT1037K1
DAYCO KTB 293
DAYCO KTB293
GATES K015558XS
HK RS1275
HUTCHINSON KH147
IPD 20-1275
IPD 201275
QUINTON HAZELL QBK586
RUVILLE 5592172
SCHAEFFLER GRUPPE 530 0234 10
SCHAEFFLER GRUPPE 530023410
SKF VKMA 03252
SKF VKMA03252
SNR KD459.32
SNR KD45932
TRIPLE FIVE 340 7394
TRIPLE FIVE 3407394
