    Schaeffler INA

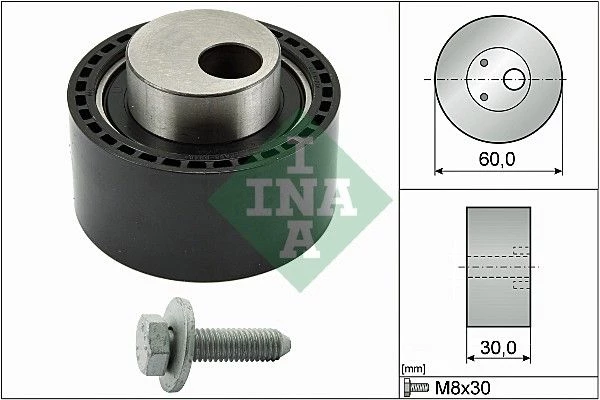

    Outer diameter (mm) 60
    Width (mm) 30
    Svhc no svhc present!
    Product number: 531 0264 10

    Ina Timing Belt Tensioner Pulley For Citroën Fiat Lancia Peugeot Suzuki 206 306

    Price excl. vat.
    £ 19,35

    Description


    INA Engine Drive Components

    Timing Belt Tensioner Pulley

    The INA Timing Belt Tensioner Pulley ensures correct belt tension and alignment in the timing drive system. Precision bearings and OE-spec construction provide quiet operation, accurate timing, and long service life — preventing costly engine damage caused by belt failure.

    OE-grade accuracy Quiet operation Long-lasting bearings

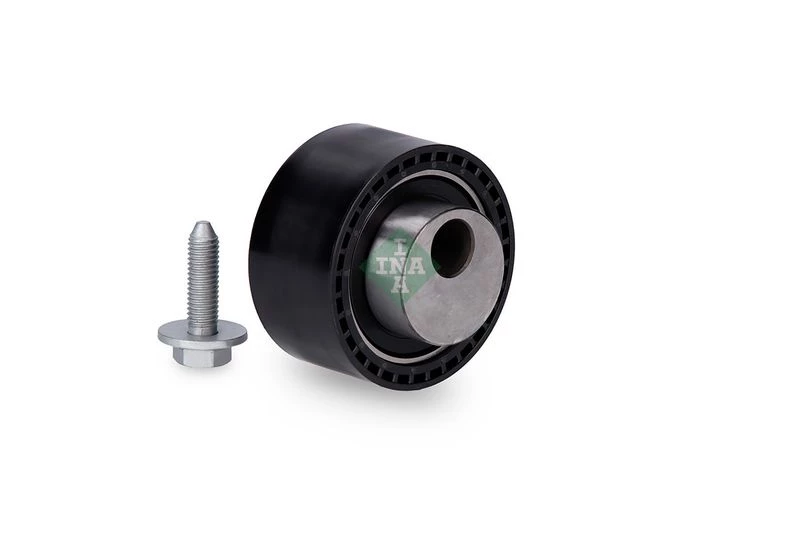

    INA Timing Belt Tensioner Pulley main view

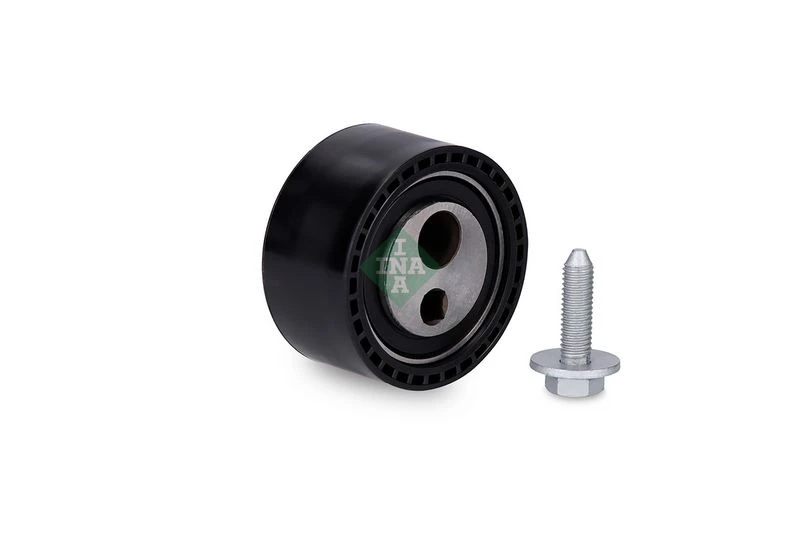

    INA Timing Belt Tensioner Pulley alternative view 1 INA Timing Belt Tensioner Pulley alternative view 2

    Key Features

    • Consistent tension: Maintains optimal belt tension for precise valve timing.
    • Premium bearings: Sealed to resist dirt, heat, and moisture.
    • OE fitment: Direct replacement with exact dimensions and mounting points.

    When to Replace

    • At manufacturer’s timing belt change interval (often 60,000–100,000 miles or 5–7 years).
    • Noisy or rough pulley bearing.
    • Visible damage or misalignment.
    • Whenever replacing the timing belt for preventative maintenance.
    Tip: Always replace the tensioner pulley along with the belt and idlers to avoid premature failure.

    How to Fit (Universal Guide)

    1. Preparation: Engine cold, battery disconnected. Refer to the timing diagram.
    2. Remove covers & belt: Release tension and remove the timing belt.
    3. Unbolt old pulley: Remove mounting bolt(s) and pulley.
    4. Inspect mount: Clean surface and check for wear.
    5. Install new INA pulley: Torque bolt to manufacturer’s specification.
    6. Reinstall belt: Align timing marks and set tension according to service manual.
    7. Test run: Rotate engine by hand, then start and check for correct operation.

    Always follow the workshop manual for torque values and procedures to avoid engine damage.

    Manufacturer Productnumber
    citroËn 0829.60 , 082960
    citroËn 0829.61 , 082961
    citroËn 0829.62 , 082962
    citroËn 0829.63 , 082963
    citroËn 082960
    citroËn 082961
    citroËn 082962
    citroËn 082963
    citroËn 94 008 296 29 , 9400829629
    citroËn 9400829629
    citroËn 96 296 777 , 96296777
    citroËn 96 381 153 80 , 9638115380
    citroËn 96 759 966 80 , 9675996680
    citroËn 96296777
    citroËn 9638115380
    citroËn 9675996680
    fiat 9400829629
    ford 1738649
    ford AV2Q-6K288-BA , AV2Q6K288BA
    ford AV2Q6K288BA
    lancia 9400829629
    peugeot 0829.60 , 082960
    peugeot 0829.61 , 082961
    peugeot 0829.62 , 082962
    peugeot 0829.63 , 082963
    peugeot 082960
    peugeot 082961
    peugeot 082962
    peugeot 082963
    peugeot 94 008 296 29 , 9400829629
    peugeot 9400829629
    peugeot 96 296 777 , 96296777
    peugeot 96 381 153 80 , 9638115380
    peugeot 96 759 966 80 , 9675996680
    peugeot 96296777
    peugeot 9638115380
    peugeot 9675996680
    suzuki 12810-67G00 , 1281067G00
    suzuki 12810-67G01 , 1281067G01
    suzuki 12810-67G01-000 , 1281067G01000
    suzuki 1281067G00
    suzuki 1281067G01
    suzuki 1281067G01000
    general motors 93387030
    Usage numbers
    AIRTEX TP-0038
    AIRTEX TP0038
    AJUSA 0829.60
    AJUSA 0829.61
    AJUSA 0829.62
    AJUSA 082960
    AJUSA 082961
    AJUSA 082962
    AJUSA 96296777
    AJUSA 9638115380
    BOSCH 1 987 949 818
    BOSCH 1987949818
    BREDA LORETT CR3526
    BREDA LORETT TDI3526
    CONTINENTAL CTAM V55921
    DAYCO ATB2040
    FEBI BILSTEIN 17063
    GATES 7786-21182
    GATES 778621182
    GATES T41140
    GATES Z80049
    GMB GTC1370
    HK S149
    HUTCHINSON HTG49
    IPD 14-0149
    IPD 140149
    LEMFÖRDER 2576601
    QUINTON HAZELL QTT870
    ROULUNDS RUBBER BT1133
    RUVILLE 55921
    SCHAEFFLER GRUPPE 531 0264 10
    SCHAEFFLER GRUPPE 531026410
    Schaeffler INA F-122985.03
    Schaeffler INA F-122985.05
    Schaeffler INA F-122985.3
    Schaeffler INA F-122985.5
    Schaeffler INA F-122985.51
    Schaeffler INA F12298503
    Schaeffler INA F12298505
    Schaeffler INA F1229853
    Schaeffler INA F1229855
    Schaeffler INA F12298551
    SKF VKM 13246
    SKF VKM13246
    SNR GT359.17
    SNR GT35917
    SPIDAN 0.066921
    SPIDAN 0066921
    SWAG 99030071
    TRIPLE FIVE 0210-07-05921P
    TRIPLE FIVE 02100705921P
    TRIPLE FIVE 03.470
    TRIPLE FIVE 03470
    TRIPLE FIVE 340 5413
    TRIPLE FIVE 3405413
    TRIPLE FIVE MBI-27110
    TRIPLE FIVE MBI27110
    TRIPLE FIVE PBT8547
    TRIPLE FIVE RKT1478
    TRIPLE FIVE TD22180
    TRIPLE FIVE Y3308
    VAICO V42-0316
    VAICO V420316
    Manufacturer Model Version Engine code Construction type Construction start Construction end Pk Power kw
    citroËn citroËn
    fiat fiat
    lancia lancia
    peugeot peugeot
    suzuki suzuki

    FAQ


    You can enter your Vehicle Registration Number on our homepage or manually select your vehicle details. We will then filter the parts that match your vehicle. Always double-check the Product Properties section to confirm correct fitment.


    Yes! We’re constantly expanding our product range and catalog. If you can’t find the part you’re looking for, please contact us. We work with several manufacturers and may be able to source the part for you.


    Many product pages include a Fitment Details tab with additional information. If you still have questions, feel free to use our message service — we’re happy to help.


    Parts do not come with additional items like fitting kits or gaskets unless it is clearly specified in the Part Details section of the product page.


    Brake Discs: Most standard brake discs are priced individually, but for safety reasons, they must be purchased in pairs. When required, we will automatically set the quantity to 2 in your basket.
    Brake Pads: These are sold as a set (either front or rear), so one box is enough for two discs.


    The Compatibility Table can be found on each product page, usually below the main product description. Look for a tab or heading labeled Compatibility.
