Width 1 (mm)	25.4
Number of teeth 1	141
Svhc	no svhc present!

Product number: 530 0470 10

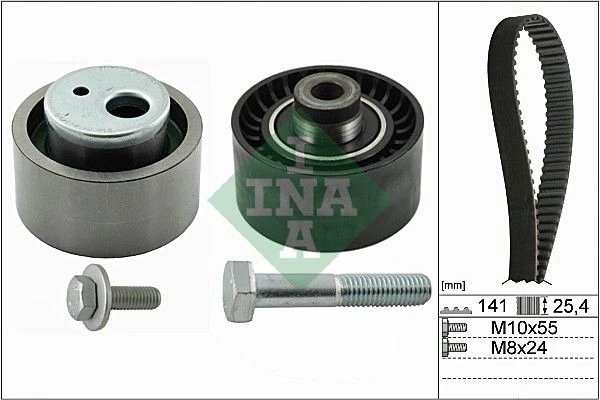

Ina Timing Belt Kit For Citroën Fiat Lancia Peugeot Suzuki 206 306 307 307 Sw 40

In stock

Shipping method	Delivery time	Stock
Shipping	11-9-2025	3

Price excl. vat.

£ 52,02

Add to cart

Description

INA Engine Drive Solutions

Timing Belt Kit

The INA Timing Belt Kit contains all the components needed for a precise, reliable camshaft drive. Each kit is engineered to OE specifications for maximum durability, performance, and peace of mind.

OE-grade quality Complete solution Long service life

Kit Features

Complete package: includes timing belt, tensioner, idlers, and all required hardware.
OE specification: precise tooth profile and belt length for correct timing.
High durability: reinforced belt fibres, premium bearings, and wear-resistant pulleys.
Optional water pump kits: available for full cooling system refresh during belt replacement.

When to Replace

Follow manufacturer’s schedule (commonly 60,000–100,000 miles or 5–7 years).
Signs of belt wear such as cracks, fraying, or missing teeth.
Noise from tensioner or idlers.
Coolant leak from the water pump if integrated.

Tip: Replace the belt, tensioner, idlers, and water pump together to avoid repeat labour and ensure reliability.

How to Fit (Universal Guide)

Preparation: Engine cold, battery disconnected. Refer to the service manual for timing marks and torque specs.
Remove covers & drain coolant (if water pump is included).
Release belt tension and remove the old belt, tensioner, idlers, and pump if fitted.
Install new components: Fit tensioner/idlers and water pump (if applicable) using new bolts/gaskets, torque to spec.
Fit new belt: Align all timing marks exactly before tensioning.
Reassemble & test: Rotate engine by hand two turns, check marks, start engine, and inspect for leaks/noise.

Always follow the exact procedure and torque values in your vehicle’s workshop manual.

Manufacturer	Productnumber
citroËn	0816.96 , 081696
citroËn	0816.A9 , 0816A9
citroËn	081696
citroËn	0816A9
citroËn	0829.59 , 082959
citroËn	082959
citroËn	0830.11 , 083011
citroËn	0830.14 , 083014
citroËn	0830.16 , 083016
citroËn	0830.36 , 083036
citroËn	0830.37 , 083037
citroËn	0830.46 , 083046
citroËn	0830.63 , 083063
citroËn	083011
citroËn	083014
citroËn	083016
citroËn	083036
citroËn	083037
citroËn	083046
citroËn	083063
citroËn	0831.78 , 083178
citroËn	0831.79 , 083179
citroËn	0831.N4 , 0831N4
citroËn	0831.N5 , 0831N5
citroËn	0831.V3 , 0831V3
citroËn	083178
citroËn	083179
citroËn	0831N4
citroËn	0831N5
citroËn	0831V3
citroËn	96 099 089 , 96099089
citroËn	96 194 727 , 96194727
citroËn	96 201 309 , 96201309
citroËn	96 261 574 80 , 9626157480
citroËn	96 290 822 80 , 9629082280
citroËn	96099089
citroËn	96194727
citroËn	96201309
citroËn	9626157480
citroËn	9629082280
fiat	9400816969
fiat	9400829598
fiat	9400830149
fiat	9400830379
fiat	9400830639
fiat	9400831789
fiat	9463380680
fiat	9467538580
fiat	9467628980
lancia	9400816969
lancia	9400830149
lancia	9400830379
lancia	9463380680
peugeot	0816.96 , 081696
peugeot	0816.A9 , 0816A9
peugeot	081696
peugeot	0816A9
peugeot	0829.59 , 082959
peugeot	082959
peugeot	0830.11 , 083011
peugeot	0830.14 , 083014
peugeot	0830.16 , 083016
peugeot	0830.36 , 083036
peugeot	0830.37 , 083037
peugeot	0830.46 , 083046
peugeot	0830.63 , 083063
peugeot	083011
peugeot	083014
peugeot	083016
peugeot	083036
peugeot	083037
peugeot	083046
peugeot	083063
peugeot	0831.78 , 083178
peugeot	0831.79 , 083179
peugeot	0831.N4 , 0831N4
peugeot	0831.N5 , 0831N5
peugeot	0831.V3 , 0831V3
peugeot	083178
peugeot	083179
peugeot	0831N4
peugeot	0831N5
peugeot	0831V3
peugeot	96 099 089 , 96099089
peugeot	96 194 727 , 96194727
peugeot	96 201 309 , 96201309
peugeot	96 261 574 80 , 9626157480
peugeot	96 290 822 80 , 9629082280
peugeot	96099089
peugeot	96194727
peugeot	96201309
peugeot	9626157480
peugeot	9629082280
suzuki	12761-67G00 , 1276167G00
suzuki	12761-86CT0 , 1276186CT0
suzuki	1276167G00
suzuki	1276186CT0

Usage numbers
BOSCH 1 987 946 375
BOSCH 1 987 948 252
BOSCH 1 987 948 269
BOSCH 1987946375
BOSCH 1987948252
BOSCH 1987948269
CONTINENTAL CTAM CT987K2
DAYCO KTB197
DAYCO KTB534
DAYCO-AU KTB197E
GATES K025524XS
GATES K035524XS
QUINTON HAZELL QBK792
RUVILLE 5599771
SCHAEFFLER GRUPPE 530 0470 10
SCHAEFFLER GRUPPE 530047010
SKF VKMA03247
SNR KD459.51
SNR KD45951

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
citroËn
fiat
lancia
peugeot
suzuki
