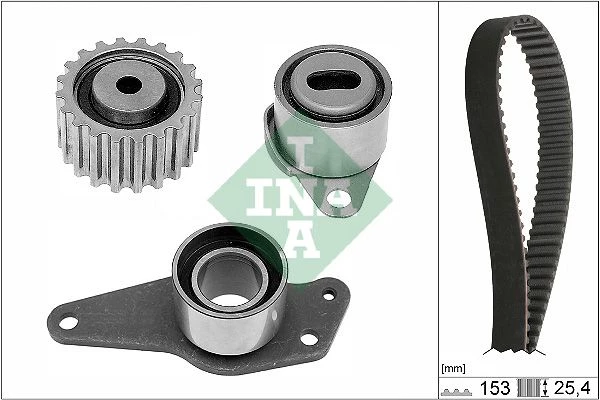

Width 1 (mm)	25.4
Number of teeth 1	153
Svhc	no svhc present!

Product number: 530 0183 10

Ina Timing Belt Kit For Mitsubishi Renault Suzuki Volvo Carisma Megane S40 Samur

Out of stock

Price incl. vat.

£ 73,80

Notify me when back in stock

Description

INA Engine Drive Solutions

Timing Belt Kit

The INA Timing Belt Kit contains all the components needed for a precise, reliable camshaft drive. Each kit is engineered to OE specifications for maximum durability, performance, and peace of mind.

OE-grade quality Complete solution Long service life

Kit Features

Complete package: includes timing belt, tensioner, idlers, and all required hardware.
OE specification: precise tooth profile and belt length for correct timing.
High durability: reinforced belt fibres, premium bearings, and wear-resistant pulleys.
Optional water pump kits: available for full cooling system refresh during belt replacement.

When to Replace

Follow manufacturer’s schedule (commonly 60,000–100,000 miles or 5–7 years).
Signs of belt wear such as cracks, fraying, or missing teeth.
Noise from tensioner or idlers.
Coolant leak from the water pump if integrated.

Tip: Replace the belt, tensioner, idlers, and water pump together to avoid repeat labour and ensure reliability.

How to Fit (Universal Guide)

Preparation: Engine cold, battery disconnected. Refer to the service manual for timing marks and torque specs.
Remove covers & drain coolant (if water pump is included).
Release belt tension and remove the old belt, tensioner, idlers, and pump if fitted.
Install new components: Fit tensioner/idlers and water pump (if applicable) using new bolts/gaskets, torque to spec.
Fit new belt: Align all timing marks exactly before tensioning.
Reassemble & test: Rotate engine by hand two turns, check marks, start engine, and inspect for leaks/noise.

Always follow the exact procedure and torque values in your vehicle’s workshop manual.

Manufacturer	Productnumber
dacia	77 00 104 596 , 7700104596
dacia	77 00 107 249 , 7700107249
dacia	77 00 116 049 , 7700116049
dacia	77 00 726 440 , 7700726440
dacia	77 00 735 486 , 7700735486
dacia	77 00 863 112 , 7700863112
dacia	77 00 863 113 , 7700863113
dacia	77 00 863 113E , 7700863113E
dacia	77 00 866 043 , 7700866043
dacia	77 00 875 307 , 7700875307
dacia	7700104596
dacia	7700107249
dacia	7700116049
dacia	7700726440
dacia	7700735486
dacia	7700863112
dacia	7700863113
dacia	7700863113E
dacia	7700866043
dacia	7700875307
dacia	82 00 051 091 , 8200051091
dacia	82 00 420 960 , 8200420960
dacia	82 00 420 964 , 8200420964
dacia	8200051091
dacia	8200420960
dacia	8200420964
mitsubishi	M343741
mitsubishi	M618062
mitsubishi	M855992
mitsubishi	M855993
mitsubishi	M864049
mitsubishi	M865078
mitsubishi	MD343741
mitsubishi	MD618062
mitsubishi	MD855993
mitsubishi	MD865078
mitsubishi	MW 3062 1261 , MW30621261
mitsubishi	MW 3075 0739 , MW30750739
mitsubishi	MW30621261
mitsubishi	MW30750739
renault	77 00 104 596 , 7700104596
renault	77 00 107 249 , 7700107249
renault	77 00 116 049 , 7700116049
renault	77 00 726 440 , 7700726440
renault	77 00 735 486 , 7700735486
renault	77 00 863 112 , 7700863112
renault	77 00 863 113 , 7700863113
renault	77 00 863 113E , 7700863113E
renault	77 00 866 043 , 7700866043
renault	77 00 875 307 , 7700875307
renault	7700104596
renault	7700107249
renault	7700116049
renault	7700726440
renault	7700735486
renault	7700863112
renault	7700863113
renault	7700863113E
renault	7700866043
renault	7700875307
renault	82 00 051 091 , 8200051091
renault	82 00 420 960 , 8200420960
renault	82 00 420 964 , 8200420964
renault	8200051091
renault	8200420960
renault	8200420964
suzuki	12810-84CT0 , 1281084CT0
suzuki	12810-84CT1 , 1281084CT1
suzuki	12810-84CT2 , 1281084CT2
suzuki	1281084CT0
suzuki	1281084CT1
suzuki	1281084CT2
volvo	30621261
volvo	30750739
volvo	30777528
volvo	30855992
volvo	30855993
volvo	30864046
volvo	30864050
volvo	30865078
volvo	3343740
volvo	3343741
volvo	33437413

Usage numbers
CONTINENTAL CTAM CT935K2
GATES K 015485 XS
GATES K015485XS
GATES K025485
GATES K025485XS
HK RS1264
HUTCHINSON KH155
IPD 20-1264
IPD 201264
QUINTON HAZELL QBK266
RUVILLE 5550274
SCHAEFFLER GRUPPE 530 0183 10
SCHAEFFLER GRUPPE 530018310
SKF VKMA 06124
SKF VKMA06124
SNR KD455.29
SNR KD45529
TRIPLE FIVE 340 7356
TRIPLE FIVE 3407356

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
mitsubishi
renault
suzuki
volvo

FAQ

You can enter your Vehicle Registration Number on our homepage or manually select your vehicle details. We will then filter the parts that match your vehicle. Always double-check the Product Properties section to confirm correct fitment.

Yes! We’re constantly expanding our product range and catalog. If you can’t find the part you’re looking for, please contact us. We work with several manufacturers and may be able to source the part for you.

Many product pages include a Fitment Details tab with additional information. If you still have questions, feel free to use our message service — we’re happy to help.

Parts do not come with additional items like fitting kits or gaskets unless it is clearly specified in the Part Details section of the product page.

Brake Discs: Most standard brake discs are priced individually, but for safety reasons, they must be purchased in pairs. When required, we will automatically set the quantity to 2 in your basket.
Brake Pads: These are sold as a set (either front or rear), so one box is enough for two discs.

The Compatibility Table can be found on each product page, usually below the main product description. Look for a tab or heading labeled Compatibility.
