Width 1 (mm)	25.4
Number of teeth 1	151
Svhc	no svhc present!

Product number: 530 0185 10

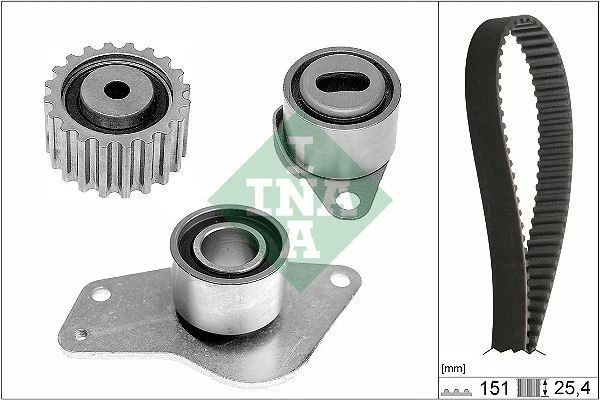

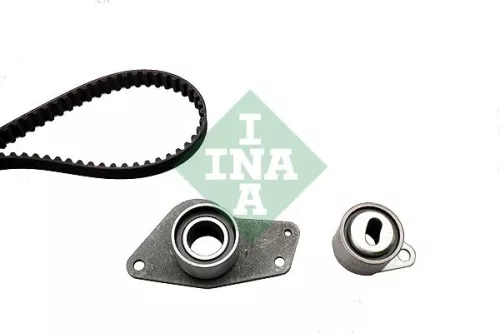

Ina Timing Belt Kit For Renault Clio Express Kangoo Rapid Thalia

Out of stock

Price incl. vat.

£ 62,91

Notify me when back in stock

Description

INA Engine Drive Solutions

Timing Belt Kit

The INA Timing Belt Kit contains all the components needed for a precise, reliable camshaft drive. Each kit is engineered to OE specifications for maximum durability, performance, and peace of mind.

OE-grade quality Complete solution Long service life

Kit Features

Complete package: includes timing belt, tensioner, idlers, and all required hardware.
OE specification: precise tooth profile and belt length for correct timing.
High durability: reinforced belt fibres, premium bearings, and wear-resistant pulleys.
Optional water pump kits: available for full cooling system refresh during belt replacement.

When to Replace

Follow manufacturer’s schedule (commonly 60,000–100,000 miles or 5–7 years).
Signs of belt wear such as cracks, fraying, or missing teeth.
Noise from tensioner or idlers.
Coolant leak from the water pump if integrated.

Tip: Replace the belt, tensioner, idlers, and water pump together to avoid repeat labour and ensure reliability.

How to Fit (Universal Guide)

Preparation: Engine cold, battery disconnected. Refer to the service manual for timing marks and torque specs.
Remove covers & drain coolant (if water pump is included).
Release belt tension and remove the old belt, tensioner, idlers, and pump if fitted.
Install new components: Fit tensioner/idlers and water pump (if applicable) using new bolts/gaskets, torque to spec.
Fit new belt: Align all timing marks exactly before tensioning.
Reassemble & test: Rotate engine by hand two turns, check marks, start engine, and inspect for leaks/noise.

Always follow the exact procedure and torque values in your vehicle’s workshop manual.

Manufacturer	Productnumber
dacia	77 00 107 249 , 7700107249
dacia	77 00 111 984 , 7700111984
dacia	77 00 114 127 , 7700114127
dacia	77 00 116 050 , 7700116050
dacia	77 00 726 440 , 7700726440
dacia	77 00 733 489 , 7700733489
dacia	77 00 863 111 , 7700863111
dacia	77 00 863 113 , 7700863113
dacia	77 00 863 113E , 7700863113E
dacia	77 00 866 043 , 7700866043
dacia	77 00 872 023 , 7700872023
dacia	77 00 872 579 , 7700872579
dacia	77 00 875 307 , 7700875307
dacia	77 01 063 978 , 7701063978
dacia	7700107249
dacia	7700111984
dacia	7700114127
dacia	7700116050
dacia	7700726440
dacia	7700733489
dacia	7700863111
dacia	7700863113
dacia	7700863113E
dacia	7700866043
dacia	7700872023
dacia	7700872579
dacia	7700875307
dacia	7701063978
dacia	82 00 051 092 , 8200051092
dacia	82 00 420 960 , 8200420960
dacia	82 00 420 964 , 8200420964
dacia	82 00 469 376 , 8200469376
dacia	8200051092
dacia	8200420960
dacia	8200420964
dacia	8200469376
renault	77 00 107 249 , 7700107249
renault	77 00 111 984 , 7700111984
renault	77 00 114 127 , 7700114127
renault	77 00 116 050 , 7700116050
renault	77 00 726 440 , 7700726440
renault	77 00 733 489 , 7700733489
renault	77 00 863 111 , 7700863111
renault	77 00 863 113 , 7700863113
renault	77 00 863 113E , 7700863113E
renault	77 00 866 043 , 7700866043
renault	77 00 872 023 , 7700872023
renault	77 00 872 579 , 7700872579
renault	77 00 875 307 , 7700875307
renault	77 01 063 978 , 7701063978
renault	7700107249
renault	7700111984
renault	7700114127
renault	7700116050
renault	7700726440
renault	7700733489
renault	7700863111
renault	7700863113
renault	7700863113E
renault	7700866043
renault	7700872023
renault	7700872579
renault	7700875307
renault	7701063978
renault	82 00 051 092 , 8200051092
renault	82 00 420 960 , 8200420960
renault	82 00 420 964 , 8200420964
renault	82 00 469 376 , 8200469376
renault	8200051092
renault	8200420960
renault	8200420964
renault	8200469376

Usage numbers
BOSCH 1 987 946 330
BOSCH 1 987 948 096
BOSCH 1987946330
BOSCH 1987948096
CONTINENTAL CTAM CT949K2
GATES K025484
GATES K025484XS
HK RS1266
IPD 20-1266
IPD 201266
QUINTON HAZELL QBK267
RUVILLE 5550276
SCHAEFFLER GRUPPE 530 0185 10
SCHAEFFLER GRUPPE 530018510
SKF VKMA 06126
SKF VKMA06126
SNR KD455.21
SNR KD45521
TRIPLE FIVE 340 7363
TRIPLE FIVE 3407363

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
renault

FAQ

You can enter your Vehicle Registration Number on our homepage or manually select your vehicle details. We will then filter the parts that match your vehicle. Always double-check the Product Properties section to confirm correct fitment.

Yes! We’re constantly expanding our product range and catalog. If you can’t find the part you’re looking for, please contact us. We work with several manufacturers and may be able to source the part for you.

Many product pages include a Fitment Details tab with additional information. If you still have questions, feel free to use our message service — we’re happy to help.

Parts do not come with additional items like fitting kits or gaskets unless it is clearly specified in the Part Details section of the product page.

Brake Discs: Most standard brake discs are priced individually, but for safety reasons, they must be purchased in pairs. When required, we will automatically set the quantity to 2 in your basket.
Brake Pads: These are sold as a set (either front or rear), so one box is enough for two discs.

The Compatibility Table can be found on each product page, usually below the main product description. Look for a tab or heading labeled Compatibility.
